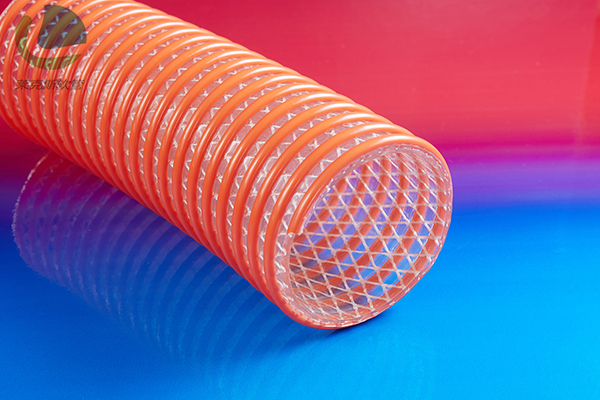

Pressure-resistant suction hose LKE723

Pressure-resistant suction hose LKE723

Product features: Pressure-resistant suction hose LKE723, reinforced with PVC intermediate cord, has excellent pressure resistance, flexible bending, suitable for various suction occasions; smooth interior, good alkali metal and acid resistance, and good chemical resistance Performance, good UV and ozone resistance; small bending radius, no leakage of gas and liquid.

Material: pipe wall: soft PVC. Spiral wire: rigid PVC;

Temperature range: about -10℃ to 80℃;

Color: transparent (standard color), other colors can be customized according to requirements;

Specifications:

DN

I.D

(mm)

O.D

(mm)

Pitch

(mm)

Under pressure

p(20)Mpa以下(kg/c㎡以下)

deformation temperature

(-0.1Mpa)

Minimum bend radius

(mm以上)

Weight

(g/m)

Item NO

25

25±0.5

34.4

8.0

0.50[5.1]

70

90

320

LKE-723-025

32

31±0.5

42

9.0

0.50[5.1]

70

120

440

LKE-723-032

38

38±0.5

49.2

9.0

0.50[5.1]

65

150

600

LKE-723-038

50

50±1.0

62.8

10.0

0.50[5.1]

65

200

860

LKE-723-050

65

63±1.0

78.0

14.3

0.50[5.1]

60

250

1230

LKE-723-065

75

76±1.0

91.4

15.1

0.50[5.1]

60

350

1520

LKE-723-075

100

101±1.5

119.0

16.5

0.50[5.1]

60

500

2350

LKE-723-100

125

127±1.5

152.0

22.0

0.50[5.1]

55

600

4405

LKE-723-125

150

152±2.0

182.0

24.0

0.50[5.1]

55

750

5800

LKE-723-150

200

203±2.0

237.0

28.0

0.50[5.1]

50

1200

8700

LKE-723-200

250

254±3.0

293.0

32.0

0.25[2.5]

50

1800

11800

LKE-723-250

300

304±3.0

350.0

34.0

0.25[2.5]

45

2100

19000

LKE-723-300
