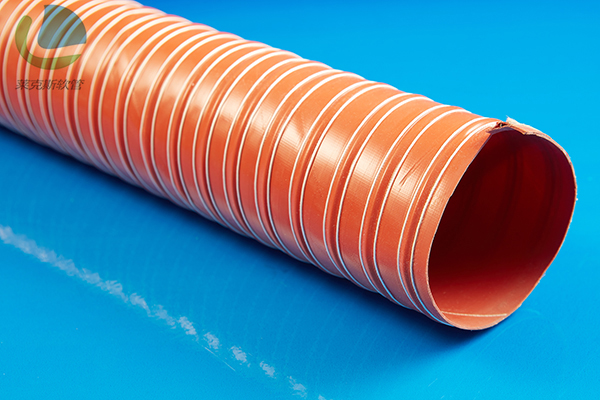

Application: red high temperature hose LKE426 is suitable for hot or cold air guide pipe, high temperature exhaust emission, motor vehicle exhaust emission, high temperature welding gas emission, particle dryer in plastic industry, printing machinery, blower and compressor; engine structure, engine heating, aviation equipment and military equipment.
Properties: double layer, good heat resistance, sealed protection, smooth inside, leak proof, super light weight, flexible bending, compressible, good flexibility. Flexible fiber reinforced, small bending radius, not easy to knot, in line with ROHS regulations;
Structure: the middle of the pipe wall is covered with elastic steel wire, the surface of the pipe is reinforced with ribbon fiber, and the rope is reinforced.
Material: spiral wire: elastic steel wire, pipe wall material: glass fiber coating on silicon surface;
Temperature range: about - 70 ° C to + 550 ° C, short time up to + 600 ° C
Specifications:
|
I.D |
O.D |
OP.Pressure |
Bend redius
|
Weight |
Length |
Item NO |
|
|
overpressure |
vacuum |
||||||
|
mm |
mm |
bar |
bar |
mm |
Kg/m |
m |
|
|
19 |
22 |
3 |
0.73 |
22 |
0.11 |
4 |
LKE-426-0019 |
|
22 |
25 |
3 |
0.72 |
25 |
0.17 |
4 |
LKE-426-0022 |
|
25 |
30 |
2.8 |
0.71 |
30 |
0.19 |
4 |
LKE-426-0025 |
|
32 |
36 |
2.7 |
0.65 |
36 |
0.28 |
4 |
LKE-426-0032 |
|
38 |
43 |
2.6 |
0.6 |
43 |
0.31 |
4 |
LKE-426-0038 |
|
44 |
49 |
2.6 |
0.58 |
49 |
0.32 |
4 |
LKE-426-0044 |
|
51 |
56 |
2.6 |
0.52 |
56 |
0.36 |
4 |
LKE-426-0051 |
|
57 |
62 |
2.5 |
0.48 |
62 |
0.43 |
4 |
LKE-426-0057 |
|
63 |
68 |
2.4 |
0.46 |
68 |
0.49 |
4 |
LKE-426-0063 |
|
70 |
75 |
2.1 |
0.44 |
75 |
0.54 |
4 |
LKE-426-0070 |
|
76 |
81 |
2.1 |
0.43 |
81 |
0.58 |
4 |
LKE-426-0076 |
|
80 |
85 |
2.1 |
0.42 |
85 |
0.61 |
4 |
LKE-426-0080 |
|
83 |
88 |
2.1 |
0.41 |
88 |
0.63 |
4 |
LKE-426-0083 |
|
89 |
94 |
2 |
0.4 |
94 |
0.69 |
4 |
LKE-426-0089 |
|
95 |
100 |
1.9 |
0.37 |
100 |
0.73 |
4 |
LKE-426-0095 |
|
102 |
107 |
1.9 |
0.35 |
107 |
0.77 |
4 |
LKE-426-0102 |
|
108 |
114 |
1.8 |
0.33 |
114 |
0.81 |
4 |
LKE-426-0108 |
|
114 |
120 |
1.5 |
0.3 |
120 |
0.85 |
4 |
LKE-426-0114 |
|
121 |
127 |
1.5 |
0.24 |
127 |
0.89 |
4 |
LKE-4260121 |
|
127 |
133 |
1.4 |
0.23 |
133 |
0.93 |
4 |
LKE-426-0127 |
|
140 |
146 |
1.3 |
0.2 |
146 |
1.00 |
4 |
LKE-426-0140 |
|
152 |
158 |
1.2 |
0.17 |
158 |
1.20 |
4 |
LKE-426-0152 |
|
178 |
184 |
1 |
0.12 |
184 |
1.43 |
4 |
LKE-426-0178 |
|
203 |
209 |
0.7 |
0.09 |
209 |
1.65 |
4 |
LKE-426-0203 |
|
254 |
260 |
0.5 |
0.07 |
260 |
2.09 |
4 |
LKE-426-0254 |
|
305 |
311 |
0.5 |
0.07 |
311 |
2.61 |
4 |
LKE-426-0305 |
