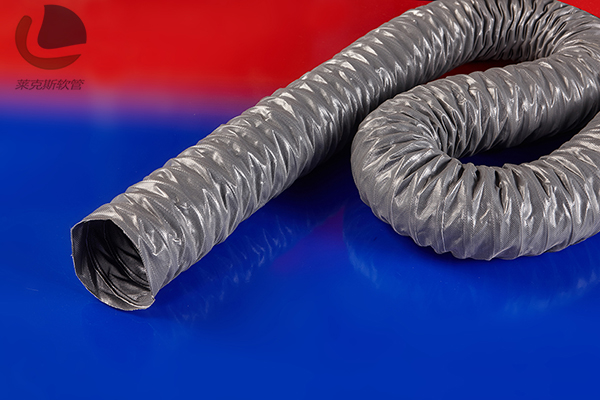

High temperature air duct LKE415
Purpose: The high temperature resistant air duct LKE415 is usually used for the guide and exhaust of hot and cold air, the exhaust system of welding gas, the exhaust of the dryer in the plastic industry, the exhaust of factory dust and the exhaust of the extractive plant, the exhaust of heating, and the exhaust of blast heaters. Welding gas exhaust wind, exhaust equipment, engine structure, heating engine.
Features: Good high temperature resistance and flame retardancy, flexible and flexible, the bending radius of the hose is approximately equal to the outer diameter.
Structure: elastic steel wire is wrapped on the pipe wall, wall: heat-resistant nylon fiber, elastic steel wire
Temperature range: -30~+100℃ instant temperature +120℃
Delivery specifications: specific can be customized according to customer requirements. The size can be customized, and the two ends of the air pipe can be connected with various connection methods.
Specifications:
Order Code
Item No
ID
mm
OD
mm
Positive Pressure
bar
Vacuum
bar
Bending
Radius
mm
Weight
kg/m
Length
m
LKE-415-0040
40
43
0.25
0.15
43
0.1
10
LKE-415-0051
51
54
0.24
0.145
54
0.12
10
LKE-415-0060
60
63
0.195
0.115
63
0.14
10
LKE-415-0076
76
79
0.16
0.08
79
0.18
10
LKE-415-0080
80
83
0.15
0.07
83
0.19
10
LKE-415-0090
90
93
0.14
0.05
93
0.2
10
LKE-415-0102
102
105
0.12
0.045
105
0.24
10
LKE-415-0110
110
113
0.11
0.035
113
0.27
10
LKE-415-0127
127
130
0.1
0.035
130
0.32
10
LKE-415-0140
140
143
0.09
0.025
143
0.35
10
LKE-415-0152
152
150
0.08
0.02
155
0.37
10
LKE-415-0160
160
163
0.075
0.02
163
0.44
10
LKE-415-0180
180
183
0.07
0.01
183
0.54
10
LKE-415-0203
203
206
0.06
0.005
206
0.6
10
LKE-415-0254
254
258
0.05
0.005
258
0.79
10
LKE-415-0305
305
309
0.04
0.005
309
0.95
10
LKE-415-0356
356
360
0.035
0.005
360
1.11
10
Remarks: The above data is provided for reference only. All data represents average values measured at ambient temperature. Relevant technical parameters may vary slightly depending on the operating environment and materials selected. For specific details, please consult our sales staff.
