Structure & Description:

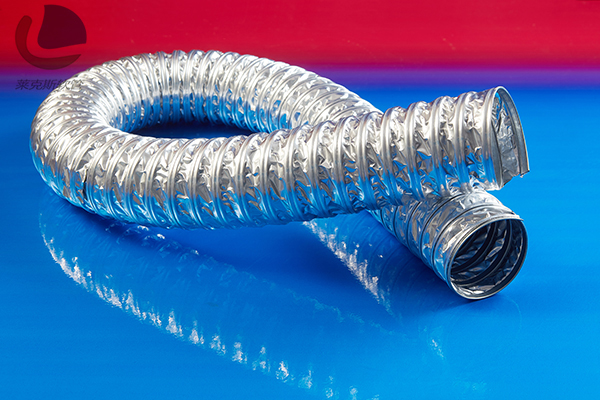

The high-temperature aluminum foil duct is made of silver-white, medium-temperature-resistant, dust-free composite aluminum foil with a thickness of 0.1mm. Internally, it features 8mm wide, 1.5mm thick grooved galvanized (zinc-plated) steel support sheets, tightly spiral-clamped for precision bending, medium-temperature resistance, and suitability for cleanroom applications. Tensile strength: ≤12 kgf/25mm for composite aluminum foil-clad ducts.
Specifications & Properties:
General Features:
Customization: Other specifications, sizes, and special requirements (e.g., double-layer/triple-layer structures) can be customized upon request.
|
|
Order Code Item No |
ID mm |
0D mm |
Bending Radius mm |
Weight kg/m |
Length m |
|
|
|
LKE-413-S-035 |
35 |
40 |
50 |
0.1 |
5/10 |
|
|
|
LKE-413-S-038 |
38 |
43 |
60 |
0.12 |
5/10 |
|
|
|
LKE-413-S-050 |
50 |
55 |
70 |
0.15 |
5/10 |
|
|
|
LKE-413-S-065 |
65 |
70 |
75 |
0.2 |
5/10 |
|
|
|
LKE-413-S-075 |
75 |
81 |
80 |
0.25 |
5/10 |
|
|
|
LKE-413-S-080 |
80 |
86 |
85 |
0.3 |
5/10 |
|
|
|
LKE-413-S-095 |
95 |
101 |
95 |
0.35 |
5/10 |
|
|
|
LKE-413-S-100 |
100 |
108 |
100 |
0.38 |
5/10 |
|
|
|
LKE-413-S-120 |
120 |
128 |
115 |
0.45 |
5/10 |
|
|
|
LKE-413-S-125 |
125 |
133 |
120 |
0.5 |
5/10 |
|
|
|
LKE-413-S-150 |
150 |
160 |
180 |
0.65 |
5/10 |
|
|
|
LKE-413-S-160 |
160 |
170 |
190 |
0.75 |
5/10 |
|
|
|
LKE-413-S-200 |
200 |
213 |
240 |
1.1 |
5/10 |
|
|
|
LKE-413-S-250 |
250 |
265 |
290 |
1.3 |
5/10 |
|
|
|
LKE-413-S-300 |
300 |
315 |
340 |
1.65 |
5/10 |
|
|
|
LKE-413-S-350 |
350 |
365 |
390 |
1.9 |
5/10 |
|
Remarks: The above data is provided for reference only. All data represents average values measured at ambient temperature. Relevant technical parameters may vary slightly depending on the operating environment and materials selected. For specific details, please consult our sales staff.
