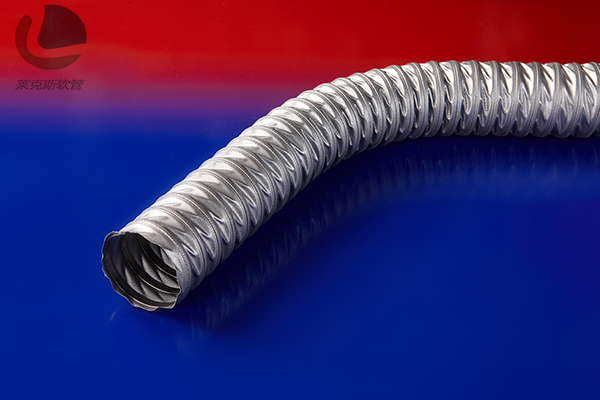

High temperature internal air duct LKE463
Application: The high temperature resistant inner air duct LKE463 is used for the guidance of hot and cold air, and the granular drying of the plastic material industry. The conveying system and the hair dryer tube of the printing industry can be compressed. Used for heating and guiding exhaust equipment in construction, aviation and military equipment, aviation and military equipment.
Properties: high temperature resistance, toughness, compressibility, reinforced fiber, small bending radius, flame resistance (according to UL94-V0)
Material
Tube wall: Silicone fiberglass cloth
Spiral: stainless steel sheet metal
Temperature range: -70℃~+300℃
Length: 5M
Specifications:
|
DN (Φ)
|
I.D (mm)
|
O.D (mm)
|
PositivePressure (20度)mpa以下/[kgf/c㎡] |
NegativePressure (20)度kpa以下/[mmHg以下] |
Bend Radius (mm) |
Weight (g/m) |
Length (m) |
Item No (po) |
|
50 |
50.8±1.0 |
55.3 |
0.018[0.18] |
-17.0[-130] |
60 |
365 |
5-10 |
LKE00463-50 |
|
65 |
65.5±1.0 |
70.5 |
0.015[0.15] |
-17.0[-130] |
70 |
475 |
5-105 |
LKE00463-65 |
|
75 |
75.5±1.0 |
80.5 |
0.013[0.13] |
-15.0[-115] |
80 |
540 |
5-10 |
LKE00463-75 |
|
90 |
91.0±1.0 |
96.0 |
0.010[0.10] |
-13.0[-100] |
95 |
565 |
5-10 |
LKE00463-90 |
|
100 |
101.5±1.5 |
106.0 |
0.010[0.10] |
-13.0[-100] |
105 |
625 |
5-10 |
LKE00463-100 |
|
125 |
126.0±1.5 |
131.0 |
0.010[0.10] |
-13.0[-100] |
125 |
790 |
5-10 |
LKE00463-125 |
|
150 |
152.0±1.5 |
157.0 |
0.008[0.08] |
-9.0[-70] |
150 |
980 |
5-10 |
LKE00463-150 |
|
175 |
177.0±2.0 |
182.0 |
0.006[0.06] |
-8.0[-62] |
175 |
1140 |
5-10 |
LKE00463-175 |
|
200 |
202.0±2.0 |
207.0 |
0.005[0.05] |
-6.0[-45] |
200 |
1300 |
5-10 |
LKE00463-200 |
|
250 |
253.5±2.5 |
258.5 |
0.003[0.03] |
-3.0[-23] |
255 |
1610 |
5-10 |
LKE00463-250 |
|
275 |
278.0±2.5 |
283.5 |
0.003[0.03] |
-3.0[-23] |
280 |
1780 |
5-10 |
LKE00463-275 |
|
300 |
304.0±3.0 |
309.5 |
0.002[0.02] |
-3.0[-23] |
305 |
1910 |
5-10 |
LKE00463-300 |
