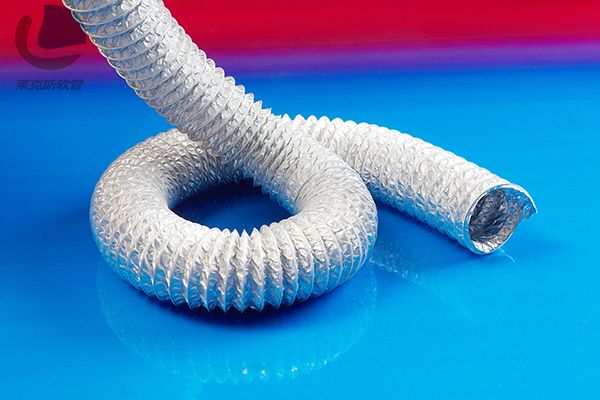

Application: High-temperature aluminum foil ducts are suitable for thermal/cold air ducting, high-temperature exhaust emission, kitchen range hood exhaust, vehicle exhaust systems, constant-temperature gas transport, high-temperature welding fume extraction, plastic granule dryers, printing machinery, blowers/compressors, engine structures, engine heating, aviation equipment, and military applications.
Properties: Single-layer construction with excellent heat resistance; sealed protection; internally smooth surface; reinforced with stretchable fibers; small bending radius; kink-resistant; RoHS compliant.
Structure: Reinforced with spring steel wire embedded in the duct wall center; expansion ratio 1:10.
Materials: Helical wire, spring steel wire, duct wall material (aluminum foil).
Temperature Range: -30°C to +150°C (instantaneous up to +180°C).
Specifications:
Order Code
Item No
Specification
inch
ID
mm
OD
mm
Bending Radius
mm
Length
m/roll
LKE-412-038
1.5"
38
48
53
5/10
LKE-412-050
2"
50
60
65
5/10
LKE-412-063
2.5"
63
73
78
5/10
LKE-412-075
3"
75
85
90
5/10
LKE-412-090
3.5"
90
100
105
5/10
LKE-412-100
4"
100
110
115
5/10
LKE-412-110
4.5"
110
120
125
5/10
LKE-412-125
5"
125
135
140
5/10
LKE-412-150
6"
150
160
170
5/10
LKE-412-160
6.5"
160
170
180
5/10
LKE-412-175
7"
175
185
195
5/10
LKE-412-200
8"
200
210
220
5/10
LKE-412-225
9"
225
235
245
5/10
LKE-412-250
10"
250
260
270
5/10
LKE-412-275
11"
275
285
295
5/10
LKE-412-300
12"
300
310
320
5/10
LKE-412-325
13"
325
335
345
5/10
LKE-412-350
14"
350
360
370
5/10
LKE-412-400
16"
400
410
425
5/10
LKE-412-450
18"
450
460
475
5/10
LKE-412-500
20"
500
510
525
5/10
LKE-412-550
22"
550
560
575
5/10
LKE-412-600
24"
600
610
630
5/10
Note: Other specifications, lengths, and additional requirements can be customized. (Double-layer and triple-layer structures are also available for customization.)
