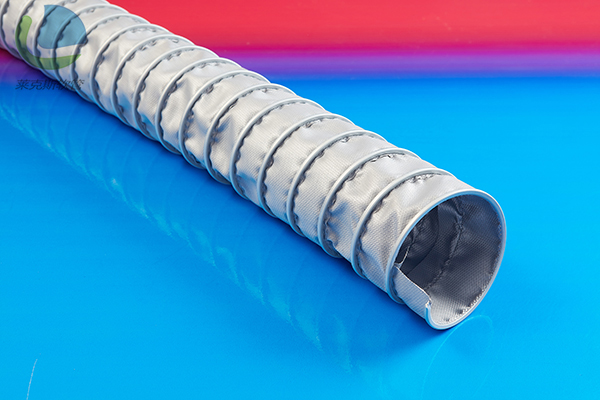

500 degree high temperature air duct LKE450
Application: 500 degree high temperature air duct LKE450 is especially suitable for hoses that require flame retardancy, suitable for solids such as dust and fibers, gaseous media such as steam and smoke, factory suction and dust removal, exhaust gas emissions, blower exhaust gas emissions and welding gas emissions.
Attributes: good heat resistance, high elasticity and compression ratio of 3:1, the outside is protected from wear by the spiral wire, the external steel wire is tightly clamped on the pipe wall, the bending radius is small, not easy to kink, flame retardant according to: DIN 4102-B1.
Structure: Patented CP structure (CP is the abbreviation of clamp profile), external spiral metal wire support (metal sheet + wire) tube wall.
Raw material: pipe wall material: stainless steel spiral wire reinforcement, special glass fiber coating, spiral wire: galvanized steel;
Temperature range: about -60 °C to +500 °C, it can reach +550 °C in a short time
Structure: Patented CP structure, external spiral metal wire support (metal sheet + wire), double pipe wall;
Patent NO: ZL201130194550.7
Specifications:
Order Code
Item No
ID
mm
OD
mm
Working Pressure
bar
Vacuum
bar
Bending Radius
mm
Weight
kg/m
Length
m
LKE-450-0038
38
50
0.9
0.45
40
0.55
10
LKE-450-0040
40
52
0.88
0.44
42
0.58
10
LKE-450-0050
50
62
0.85
0.38
50
0.74
10
LKE-450-0055
55
67
0.78
0.35
54
0.8
10
LKE-450-0060
60
72
0.68
0.32
58
0.87
10
LKE-450-0065
65
77
0.59
0.29
62
0.94
10
LKE-450-0070
70
82
0.53
0.26
66
1
10
LKE-450-0075
75
87
0.47
0.23
70
1.07
10
LKE-450-0080
80
92
0.43
0.2
74
1.13
10
LKE-450-0090
90
102
0.355
0.14
82
1.26
10
LKE-450-0100
100
112
0.3
0.12
101
1.36
10
LKE-450-0110
110
122
0.258
0.105
110
1.5
10
LKE-450-0120
120
132
0.224
0.09
119
1.59
10
LKE-450-0125
125
137
0.21
0.085
123
1.65
10
LKE-450-0130
130
142
0.197
0.075
128
1.78
10
LKE-450-0140
140
152
0.175
0.06
137
1.88
10
LKE-450-0150
150
162
0.157
0.05
113
1.98
10
LKE-450-0160
160
172
0.14
0.045
120
2.17
10
LKE-450-0170
170
182
0.128
0.04
127
2.33
10
LKE-450-0175
175
187
0.123
0.04
131
2.46
10
LKE-450-0180
180
192
0.117
0.04
134
2.58
10
LKE-450-0200
200
212
0.099
0.03
148
2.69
10
LKE-450-0215
215
227
0.088
0.03
159
2.82
10
LKE-450-0225
225
237
0.082
0.025
166
2.98
10
LKE-450-0250
250
262
0.069
0.025
183
3.25
10
LKE-450-0275
275
287
0.059
0.02
201
3.51
10
LKE-450-0300
300
312
0.052
0.015
218
3.77
10
LKE-450-0315
315
327
0.048
0.015
228
3.86
10
LKE-450-0325
325
337
0.046
0.015
236
3.93
10
LKE-450-0350
350
362
0.04
0.015
253
4.29
10
LKE-450-0375
375
387
0.036
0.01
270
2.43
10
LKE-450-0400
400
412
0.033
0.01
288
2.61
10
LKE-450-0450
450
462
0.027
0.01
323
2.93
10
LKE-450-0500
500
512
0.023
0.005
358
3.25
10
LKE-450-0600
600
612
0.017
0.005
428
3.89
10
LKE-450-0700
700
712
0.014
0.002
498
4.54
10
LKE-450-0800
800
812
0.011
0.002
568
5.18
10
LKE-450-0900
900
912
0.009
0.001
638
5.82
10
LKE-450-1000
1000
1012
0.007
0.001
708
6.46
10
Remarks: The above data is provided for reference only. All data represents average values measured at ambient temperature. Relevant technical parameters may vary slightly depending on the operating environment and materials selected. For specific details, please consult our sales staff.
