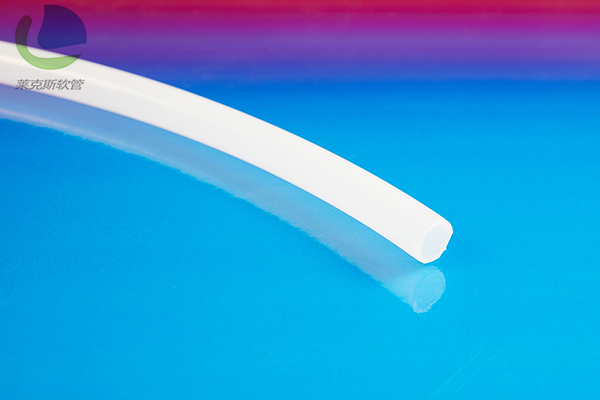

Anti-static air pipe LKE793
Product Features:
√Surface impedance 10E4Ω-10E6Ω.
√Made of imported polyester TPU raw materials, the pipe wall is smooth and uniform, the size is stable, and the working life is long.
√Good resilience, small bending radius. Easy to install and cut.
√ Wear resistance, excellent mechanical properties.
√Normal temperature (23℃) working pressure 0.9Mpa. Burst pressure 3.2Mpa.
√The normal operating temperature range is -20℃~+90℃.
√Conventional hardness: 95A. Customized hardness can be selected: 85A~98A.
√Using an online pipe diameter control system, the pipe diameter tolerance is controlled within ±0.15mm.
√Use medium: non-corrosive compressed gas, lubricating oil.
Application: Suitable for use in production lines or assembly systems that need to prevent static electricity or electric current, and the effect will be better when used with pipe joints.
Specifications:
|
Item NO |
DN |
O.D（mm） |
I.D（mm） |
Length（M） |
Bend radius |
||
|
Size |
Tolerance |
Size |
Tolerance |
||||
|
LKE00793-04 |
4*25 |
4 |
±0.1 |
2.5 |
±0.1 |
200 |
10 |
|
LKE00793-05 |
5*3 |
5 |
±0.1 |
3 |
±0.1 |
200 |
10 |
|
LKE00793-06 |
6*4 |
6 |
±0.1 |
4 |
±0.1 |
200 |
15 |
|
LKE00793-08 |
8*5 |
8 |
±0.1 |
5 |
±0.1 |
100 |
20 |
|
LKE00793-08 |
8*5.5 |
8 |
±0.1 |
5.5 |
±0.1 |
100 |
20 |
|
LKE00793-08 |
8*6 |
8 |
±0.1 |
6 |
±0.1 |
100 |
20 |
|
LKE00793-10 |
10*6.5 |
10 |
±0.15 |
6.5 |
±0.15 |
100 |
27 |
|
LKE00793-10 |
10*8 |
10 |
±0.15 |
8 |
±0.15 |
100 |
27 |
|
LKE00793-12 |
12*8 |
12 |
±0.15 |
8 |
±0.15 |
100 |
35 |
|
LKE00793-12 |
12*10 |
12 |
±0.15 |
10 |
±0.15 |
100 |
35 |
|
LKE00793-14 |
14*10 |
14 |
±0.20 |
10 |
±0.20 |
100 |
58 |
|
LKE00793-16 |
16*11 |
16 |
±0.20 |
11 |
±0.20 |
100 |
65 |
|
LKE00793-16 |
16*12 |
16 |
±0.20 |
12 |
±0.20 |
100 |
65 |
|
LKE00793-16 |
16*13 |
16 |
±0.20 |
13 |
±0.20 |
100 |
65 |
