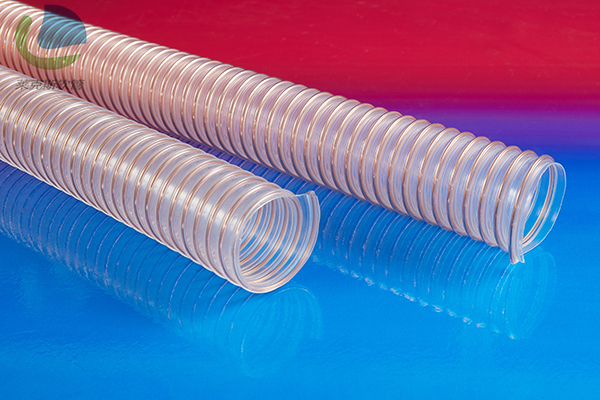

Food grade steel wire hose LKE615
Application: Food grade steel wire hose LKE615 is commonly used for anti-wear protection, suction and delivery. A highly abrasive solid with a high flow rate. For example, sand. Gravel. Foodstuffs. Corn. Broken glass and crumbs; Gas and liquid.
Compliance with: FDA 21 CFR 177.2600 and 178.2010. EC Regulation 2002/72/EC including amended Regulation 2007/19/EC; Anti - microbial and hydrolysis. Good chemical resistance. Good resistance to UV and ozone. Used as a durable protective tube.
Properties: Excellent protection against wear and tear. The lower part of the belt is reinforced with wire and narrow inclination (wear resistance is 2.5~5 times higher than most rubber materials. 6 to 8 times higher than soft PVC); Internal smoothing. Optimize flow characteristics. Light weight and flexible; High pressure resistance. Vacuum and compression. High axial strength. High tensile strength. and tear strength; Good low temperature scalability. Small bending radius. Not easy to knot. Free of softeners and halogens. Gases and liquids do not leak. Vacuum seal. Electrostatic discharge through helical wire grounding.
Structure: Spiral elastic steel wire firmly inserted into the wall of the tube. Make the external liquidity more optimized. Wall thickness about 1.5 mm. Strengthen the main wear area;
Material: Wall: polyether-polyurethane pre-PUR; Spiral wire: elastic steel wire;
Temperature range: about. -40°C to 125°C. Up to 150°C for short periods.
Product specifications:
|
I.D |
O.D |
OP.pressure |
Bend radius ( Middle of hose) |
Weight |
Length |
Item NO |
|
|
positive pressure |
negative pressure |
||||||
|
mm |
mm |
bar |
bar |
mm |
Kg/m |
m |
PO |
|
13 |
20 |
4.5 |
1 |
20 |
0.14 |
10 |
LKE-615-0013 |
|
16 |
23 |
4.3 |
1 |
23 |
0.16 |
10 |
LKE-615-0016 |
|
18 |
25 |
4.25 |
1 |
25 |
0.17 |
10 |
LKE-615-0018 |
|
20 |
27 |
4.1 |
1 |
27 |
0.23 |
10 |
LKE-615-0020 |
|
22 |
29 |
3.91 |
1 |
29 |
0.25 |
10 |
LKE-615-0022 |
|
25 |
32 |
3.655 |
1 |
32 |
0.28 |
10 |
LKE-615-0025 |
|
26 |
33 |
3.6 |
1 |
33 |
0.29 |
10 15 |
LKE-615-0026 |
|
30 |
40 |
3.45 |
0.98 |
40 |
0.42 |
10 |
LKE-615-0030 |
|
32 |
42 |
3.26 |
0.97 |
42 |
0.44 |
10 |
LKE-615-0032 |
|
33 |
43 |
3.17 |
0.97 |
43 |
0.46 |
10 15 |
LKE-615-0033 |
|
35 |
45 |
3.11 |
0.97 |
45 |
0.48 |
10 |
LKE-615-0035 |
|
38 |
48 |
3.08 |
0.95 |
48 |
0.52 |
10 |
LKE-615-0038 |
|
40 |
50 |
3.05 |
0.95 |
50 |
0.54 |
10 |
LKE-615-0040 |
|
42 |
52 |
2.91 |
0.94 |
52 |
0.56 |
10 |
LKE-615-0042 |
|
45 |
55 |
2.73 |
0.94 |
55 |
0.6 |
10 |
LKE-615-0045 |
|
50 |
60 |
2.45 |
0.93 |
60 |
0.66 |
10 |
LKE-615-0050 |
|
55 |
65 |
2.25 |
0.88 |
65 |
0.72 |
10 |
LKE-615-0055 |
|
60 |
70 |
2.06 |
0.81 |
70 |
0.78 |
10 |
LKE-615-0060 |
|
65 |
75 |
1.91 |
0.75 |
75 |
0.84 |
10 |
LKE-615-0065 |
|
70 |
81 |
1.78 |
0.67 |
97 |
0.98 |
10 |
LKE-615-0070 |
|
75 |
86 |
1.66 |
0.615 |
103 |
1.05 |
10 |
LKE-615-0075 |
|
80 |
91 |
1.56 |
0.56 |
109 |
1.11 |
10 |
LKE-615-0080 |
|
90 |
101 |
1.3 |
0.425 |
121 |
1.25 |
10 |
LKE-615-0090 |
|
100 |
111 |
1.25 |
0.39 |
133 |
1.49 |
10 |
LKE-615-0100 |
|
102 |
113 |
1.225 |
0.39 |
136 |
1.51 |
15 |
LKE-615-0102 |
|
110 |
121 |
1.14 |
0.36 |
145 |
1.63 |
10 |
LKE-615-0110 |
|
115 |
126 |
1.09 |
0.335 |
151 |
1.68 |
15 |
LKE-615-0115 |
|
120 |
131 |
1.05 |
0.315 |
157 |
1.77 |
15 |
LKE-615-0120 |
|
125 |
136 |
1.01 |
0.295 |
163 |
1.84 |
10 |
LKE-615-0125 |
|
127 |
138 |
0.99 |
0.29 |
166 |
1.87 |
10 15 |
LKE-615-0127 |
|
130 |
141 |
0.965 |
0.27 |
169 |
1.91 |
15 |
LKE-615-0130 |
|
140 |
151 |
0.9 |
0.24 |
181 |
2.03 |
10 |
LKE-615-0140 |
|
150 |
161 |
0.84 |
0.2 |
193 |
2.41 |
10 |
LKE-615-0150 |
|
152 |
163 |
0.825 |
0.195 |
196 |
2.44 |
15 |
LKE-615-0152 |
|
160 |
171 |
0.785 |
0.185 |
205 |
2.56 |
10 |
LKE-615-0160 |
|
170 |
181 |
0.74 |
0.17 |
217 |
2.72 |
15 |
LKE-615-0170 |
|
175 |
186 |
0.72 |
0.155 |
223 |
2.79 |
15 |
LKE-615-0175 |
|
180 |
191 |
0.7 |
0.15 |
229 |
2.87 |
15 |
LKE-615-0180 |
|
200 |
213 |
0.63 |
0.135 |
256 |
3.12 |
15 |
LKE-615-0200 |
|
225 |
238 |
0.56 |
0.11 |
286 |
3.5 |
15 |
LKE-615-0225 |
|
250 |
263 |
0.51 |
0.085 |
316 |
3.88 |
15 |
LKE-615-0250 |
|
275 |
288 |
0.46 |
0.08 |
346 |
4.26 |
15 |
LKE-615-0275 |
|
280 |
293 |
0.45 |
0.075 |
352 |
4.33 |
15 |
LKE-615-0280 |
|
300 |
313 |
0.42 |
0.07 |
376 |
5.16 |
15 |
LKE-615-0300 |
|
315 |
328 |
0.405 |
0.065 |
394 |
5.41 |
10 |
LKE-615-0315 |
|
320 |
333 |
0.395 |
0.065 |
400 |
5.5 |
10 |
LKE-615-0320 |
|
325 |
338 |
0.385 |
0.065 |
406 |
5.58 |
10 |
LKE-615-0325 |
|
350 |
363 |
0.36 |
0.055 |
436 |
6 |
10 |
LKE-615-0350 |
|
375 |
388 |
0.34 |
0.05 |
466 |
6.42 |
10 |
LKE-615-0375 |
|
400 |
413 |
0.32 |
0.045 |
496 |
8.02 |
10 |
LKE-615-0400 |
|
450 |
463 |
0.28 |
0.035 |
556 |
9 |
10 |
LKE-615-0450 |
|
500 |
514 |
0.255 |
0.03 |
617 |
10 |
10 |
LKE-615-0500 |
