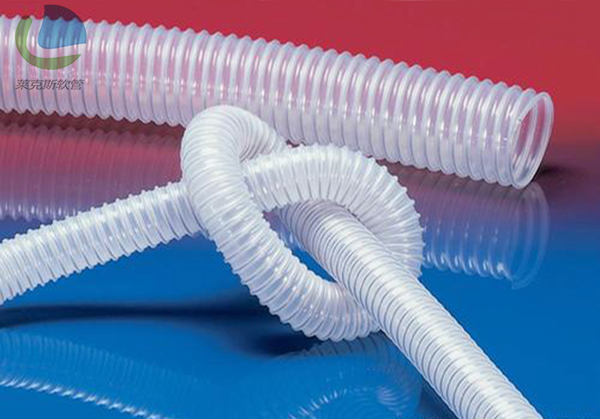

Food grade hose LKE618

Food grade hose LKE618

Application: Food grade hose LKE618 is especially suitable for solids with strong abrasive force, such as dust, powder, fibers, debris and particles, corrosive gas and liquid media, vacuum cleaners, conveying systems, blowers and compressors. Chemical Industry.

Attributes: Medium and heavy duty. Smooth inside. Optimized flow characteristics. Scalable. Food grade pipe wall. Complies with: FDA 21 CFR 177.1520 (c) 3.2a. EC guideline 2002/72/EC incl. amendment 2005/79/EC .German guidline III BfR (see chapt. 14.5). Odorless. Good resistance to mineral oil; good resistance to alkali metals and acids. Excellent chemical resistance; small bending radius. Not easy to kink; no softener and halogen. No gas and liquid leakage. Complies with RoHS regulations. Can discharge static electricity. Ground through spiral wire.

Structure: Spiral elastic steel wire is firmly implanted in the wall of the tube. The external fluidity is more optimized. The wall thickness is about 0.8 mm;

Material: pipe wall material: special polyethylene. Spiral wire: elastic steel wire;

Temperature range: about -35°C to +80°C.

Specifications:

I.D

O.D

OP.pressure

Bend radius

( Middle of hose)

Weight

Length

Item NO

positive

pressure

negative

pressure

mm

mm

bar

bar

mm

Kg/m

m

PO

28

34

1.04

0.54

34

0.25

10

LKE-618-0028

30

37

0.98

0.52

37

0.21

10

LKE-618-0030

32

39

0.92

0.505

39

0.23

10

LKE-618-0032

35

42

0.84

0.495

42

0.24

10

LKE-618-0035

38

45

0.775

0.475

45

0.26

10

LKE-618-0038

40

47

0.74

0.46

47

0.28

10

LKE-618-0040

45

52

0.66

0.43

52

0.31

10

LKE-618-0045

50

57

0.595

0.395

57

0.34

10

LKE-618-0050

55

62

0.54

0.35

62

0.37

10

LKE-618-0055

60

67

0.495

0.32

67

0.4

10

LKE-618-0060

65

72

0.46

0.275

72

0.44

10

LKE-618-0065

70

79

0.425

0.23

79

0.56

10

LKE-618-0070

75

84

0.395

0.21

84

0.6

10

LKE-618-0075

80

89

0.375

0.2

89

0.64

10

LKE-618-0080

90

99

0.33

0.17

99

0.71

10

LKE-618-0090

100

109

0.3

0.135

109

0.79

10

LKE-618-0100

110

119

0.27

0.12

119

0.86

10

LKE-618-0110

115

124

0.26

0.115

124

0.9

10

LKE-618-0115

120

129

0.25

0.115

129

0.94

10

LKE-618-0120

125

134

0.24

0.09

134

0.98

10

LKE-618-0125

130

139

0.23

0.09

139

1.03

10

LKE-618-0130

140

149

0.215

0.09

149

1.1

10

LKE-618-0140

150

159

0.2

0.09

159

1.16

10

LKE-618-0150

160

169

0.185

0.075

169

1.24

10

LKE-618-0160

175

184

0.17

0.06

184

1.36

10

LKE-618-0175

180

189

0.165

0.06

189

1.4

10

LKE-618-0180

200

210

0.15

0.06

210

1.55

10

LKE-618-0200

225

235

0.135

0.04

235

1.74

10

LKE-618-0225

250

260

0.12

0.025

260

1.92

10

LKE-618-0250

275

285

0.11

0.02

285

2.09

10

LKE-618-0275

280

290

0.105

0.02

290

2.13

10

LKE-618-0280

300

310

0.1

0.02

310

2.27

10

LKE-618-0300
