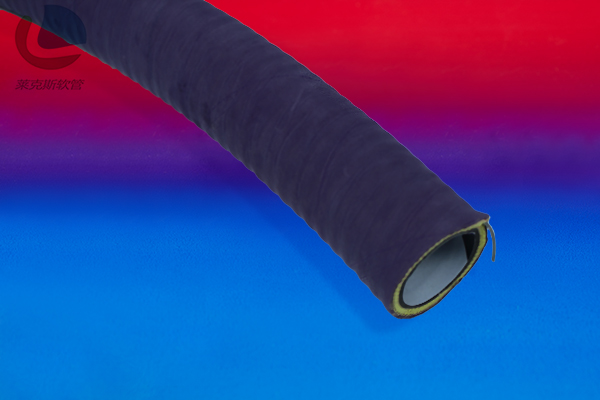

Anti-static food grade rubber tube LKE659
Application Scope:
● General-purpose inhalable delivery hose, widely used to transport a variety of chemicals, medicines and food.
● In line with EN12115 standard.
Notable features:
●UPE(Ultra High Molecular Polypolyethylene) inner tube is especially suitable for handling highly corrosive chemicals.
Hose construction:
Inner tube
●UPE(ultra high molecular polypolyethylene) white, smooth, black UPE spiral conductive stripes through the inner wall, food grade in line with FDA standards; Certified by Italian D.M.21/03/73.
Reinforced layer construction
● High strength multilayer synthetic fibers
● Implant spiral metal steel wire
● Provide copper wire according to customer's requirement
The surface layer
●EPDM rubber (EPDM), purple, wear resistance, ozone resistance, atmospheric erosion resistance, smooth, cloth surface.
Operating temperature range:
Low - 35 ℃ to 100 ℃
● Can be no more than 30 minutes up to 130℃ steam disinfection
Safety factor:
●≥4 times working pressure (inner diameter below 75mm)
●≥3 times of working pressure (inner diameter above 75mm)
Product specifications:
|
内径 [mm] |
壁厚[mm] |
工作压力[bar] |
真空度[bar] |
最小弯曲半径[mm] |
重量 [Kg/m] |
每卷长度[m] |
|
19 |
6.0 |
16 |
-0.9 |
125 |
0.67 |
40 |
|
25 |
6.0 |
16 |
-0.9 |
150 |
0.84 |
40 |
|
32 |
6.0 |
16 |
-0.9 |
175 |
1.00 |
40 |
|
38 |
6.5 |
16 |
-0.9 |
225 |
1.37 |
40 |
|
50 |
8.0 |
16 |
-0.9 |
275 |
2.10 |
40 |
|
63.5 |
8.0 |
16 |
-0.9 |
300 |
2.70 |
40 |
|
75 |
8.0 |
16 |
-0.9 |
350 |
3.30 |
40 |
|
100 |
9.0 |
16 |
-0.9 |
450 |
4.90 |
40 |
