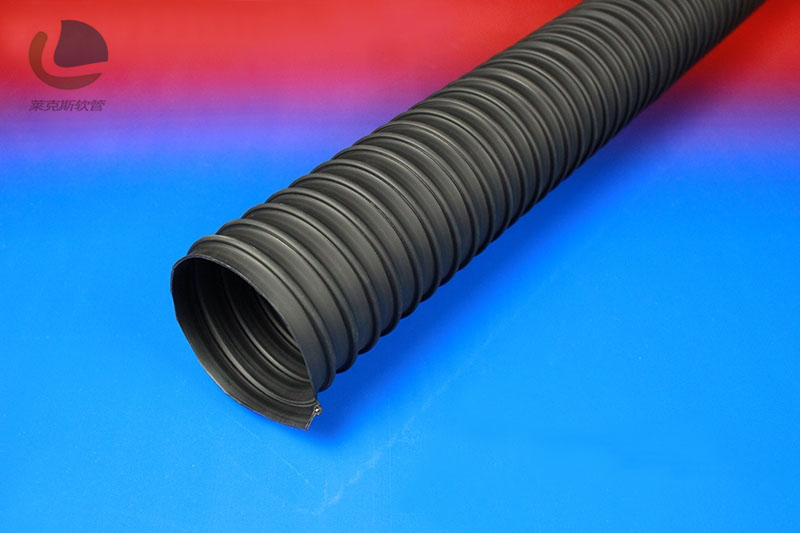

Acid and alkali resistant hose LKE333

Acid and alkali resistant hose LKE333

Product features: light weight. Flexible bending. High temperature stability and good chemical resistance. Good ozone resistance. This hose can isolate the noise generated during the air conveying process. Excellent bending performance. Achieve the certification requirements of REACH.

Scope of application:

Air conveying hoses for mechanical automation industry. It can also be used as a ventilation device with pipes. As a suction pipe and transport pipe.

Especially suitable for the following materials:

• High temperature industrial exhaust gas, steam transmission

• High temperature automobile gas and smoke suction

• Hot air pumping for other high temperature engine equipment or dryers

• Chemical gas suction

• Transport of cold air

Temperature range: -40 °C to 135°C (up to 150°C for short periods)

Material: wall: thermoplastic rubber TPV, TPR. Strip: reinforced polypropylene

Product specifications:


Item NO

I.D

O.D

Weight

Vacuum

Bend radius

Length

Volume



mm

mm

g/m

mH2O

mm

m

m3

LKE-333-0020

20.0

0.9

140

3.0

30

20

0.028

LKE-333-0025

25.0

0.9

180

3.0

40

20

0.035

LKE-333-0030

30.0

0.9

200

3.0

40

20

0.049

LKE-333-0032

31.8

0.9

220

2.5

45

20

0.051

LKE-333-0035

35.0

0.9

240

2.5

50

20

0.059

LKE-333-0038

38.1

0.9

270

2.5

55

20

0.068

LKE-333-0040

40.0

0.9

280

2.5

70

20

0.071

LKE-333-0045

45.0

0.9

330

2.5

80

20

0.083

LKE-333-0052

50.8

0.9

390

2.5

80

20

0.104

LKE-333-0055

55.0

0.9

460

2.5

85

20

0.119

LKE-333-0060

60.0

0.9

530

1.6

90

20

0.170

LKE-333-0063

63.5

0.9

570

1.6

95

20

0.180

LKE-333-0065

65.0

0.9

585

1.6

100

20

0.191

LKE-333-0070

70.0

0.9

630

1.6

105

30

0.293

LKE-333-0076

76.2

0.9

800

1.6

110

30

0.328

LKE-333-0080

80.0

0.9

790

1.6

115

30

0.359

LKE-333-0090

90.0

0.9

830

1.4

125

30

0.548

LKE-333-0100

100.0

0.9

890

1.3

140

30

0.640

LKE-333-0102

102.0

0.9

890

1.3

140

30

0.652

LKE-333-0110

110.0

0.9

1020

1.2

150

30

0.743

LKE-333-0120

120.0

0.9

1180

1.0

160

30

0.831

LKE-333-0127

127.0

0.9

1230

1.0

170

30

0.900

LKE-333-0130

130.0

0.9

1390

0.9

170

20

0.780

LKE-333-0140

140.0

0.9

1520

0.9

180

20

0.860

LKE-333-0150

151.5

0.9

1.650

0.8

200

20

0.957

LKE-333-0152

152.8

0.9

1.670

0.8

200

20

0.964

LKE-333-0160

160.0

0.9

1.970

0.7

220

20

1.049

LKE-333-0170

170.0

0.9

2.060

0.5

230

20

1.140

LKE-333-0180

180.0

0.9

2.170

0.4

250

20

1.236

LKE-333-0200

200.0

0.9

2.340

0.4

260

20

1.440
