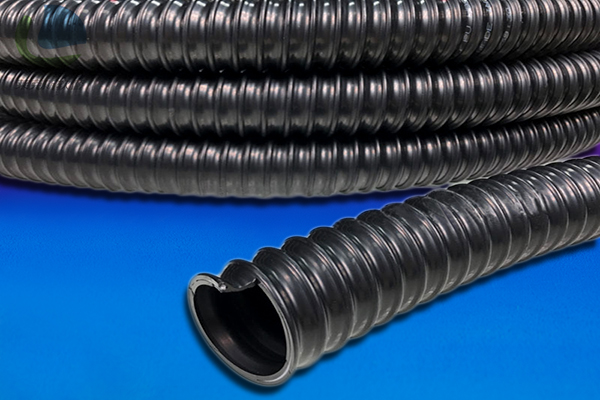

Chemical resistant hose LKE331
Application: Used for powdery solids. Such as dust, powder and fiber. Gaseous media such as steam and smoke. Steam extraction. Hot or cold air guide pipe. Used for blowers and compressors.
Properties: resistant to strong acids and alkalis. Good chemical resistance. The bending radius is approximately equal to the outer diameter. It can discharge static electricity (according to BGR132.formerly ZH 1/200). The spiral wire is grounded.
Structure: Transparent tube: elastic steel wire covering the tube wall. Wall: Thermoplastic rubber (TPE). Wall thickness of about 0.4MM. Spiral: elastic steel wire
Temperature range: about -40 °C to +125 °C. Can reach +150 °C in a short time
Specifications:
|
I.D |
O.D |
OP.pressure |
Bend radius ( Middle of hose) |
Weight |
Length |
Item No |
|
|
Positive Pressure |
Vacuum |
||||||
|
mm |
mm |
bar |
bar |
mm |
Kg/M |
M |
|
|
38 |
56 |
0.22 |
0.18 |
40 |
0.18 |
|
LKE-331-0038 |
|
50 |
58 |
0.265 |
0.13 |
58 |
0.23 |
|
LKE-331-0050 |
|
55 |
63 |
0.24 |
0.115 |
63 |
0.24 |
10 |
LKE-331-0055 |
|
60 |
68 |
0.22 |
0.105 |
68 |
0.26 |
|
LKE-331-0060 |
|
65 |
73 |
0.205 |
0.085 |
73 |
0.28 |
10 |
LKE-331-0065 |
|
70 |
78 |
0.19 |
0.075 |
78 |
0.30 |
|
LKE-331-0070 |
|
75 |
83 |
0.175 |
0.07 |
83 |
0.33 |
|
LKE-331-0075 |
|
80 |
88 |
0.165 |
0.065 |
88 |
0.36 |
|
LKE-331-0080 |
|
90 |
98 |
0.15 |
0.055 |
98 |
0.44 |
10 |
LKE-331-0090 |
|
100 |
108 |
0.135 |
0.045 |
108 |
0.52 |
|
LKE-331-0100 |
|
110 |
118 |
0.12 |
0.04 |
118 |
0.55 |
10 |
LKE-331-0110- |
|
115 |
123 |
0.115 |
0.04 |
123 |
0.57 |
10 |
LKE-331-0115 |
|
120 |
128 |
0.11 |
0.04 |
128 |
0.60 |
10 |
LKE-331-0120 |
|
125 |
133 |
0.105 |
0.03 |
133 |
0.64 |
|
LKE-331-0125 |
|
130 |
138 |
0.105 |
0.03 |
138 |
0.67 |
10 |
LKE-331-0130 |
|
140 |
148 |
0.095 |
0.03 |
148 |
0.71 |
|
LKE-331-0140 |
|
150 |
158 |
0.09 |
0.03 |
158 |
0.76 |
|
LKE-331-0150 |
|
160 |
168 |
0.085 |
0.025 |
168 |
0.80 |
|
LKE-331-0160 |
|
175 |
183 |
0.075 |
0.02 |
183 |
0.88 |
10 |
LKE-331-0175 |
|
180 |
188 |
0.075 |
0.02 |
188 |
0.91 |
|
LKE-331-0180 |
|
200 |
208 |
0.06 |
0.02 |
208 |
1.01 |
|
LKE-331-0200 |
|
225 |
233 |
0.05 |
0.015 |
233 |
1.10 |
10 |
LKE-331-0225 |
|
250 |
258 |
0.04 |
0.015 |
258 |
1.21 |
10 |
LKE-331-0250 |
|
275 |
283 |
0.03 |
0.01 |
283 |
1.33 |
10 |
LKE-331-0275 |
|
280 |
288 |
0.02 |
0.01 |
288 |
1.38 |
10 |
LKE-331-0280 |
|
300 |
308 |
0.01 |
0.01 |
308 |
1.59 |
10 |
LKE-331-0300 |
Other inner diameter and length can also be customized according to customer needs. All required data were obtained at 20 ° C
