Chemical resistant hose LKE350

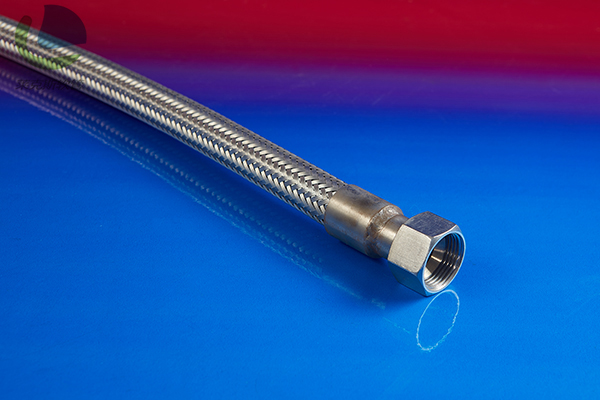

Characteristics: The chemical resistant hose LKE350 is reinforced by steel wire braided PTFE tube, and the two ends are equipped with metal joints to form the hose assembly. It has the characteristics of high/low temperature resistance, corrosion resistance, non-stick and aging resistance.
Structure: made of PTFE, outer layer: made of stainless steel SUS304 and SUS201 braided mesh, strengthen the hardness of the hose, improve the pressure resistance, and connect various quick connectors.
Temperature range: continuous temperature resistance -70℃～+260℃;
Application: suitable for rubber, plastics, clothing, automobiles, machine tools, shipbuilding, motors, diesel engines, papermaking, molds and other industries for hydraulic, steam pressure, steam delivery and other software connections. It has better usability and lifespan than other hoses for conveying liquid, gas and strong corrosive medium with alternating cold and heat.
Specifications:
|
DM |
I.D |
O.D |
Pressure |
Bend radius |
Weight |
Length |
||||
|
mm |
Inch |
mm |
mm |
W.P |
B.P |
mm |
kg/m |
m |
||
|
kgf/cm2 |
Mpa |
kgf/cm2 |
Mpa |
|||||||
|
8 |
1/4 |
6.3 |
9.5 |
210 |
20.58 |
980 |
96.04 |
77 |
0.14 |
45 |
|
10 |
3/8 |
7.9 |
11.3 |
175 |
17.15 |
840 |
82.32 |
102 |
0.16 |
45 |
|
15 |
1/2 |
12.7 |
16.4 |
105 |
10.29 |
590 |
57.82 |
166 |
0.22 |
30 |
|
20 |
3/4 |
15.8 |
19.7 |
80 |
7.84 |
420 |
41.16 |
196 |
0.25 |
22 |
|
25 |
1 |
22.2 |
26.1 |
70 |
6.86 |
280 |
27.44 |
229 |
0.4 |
18 |
|
32 |
1 1/4 |
28.5 |
33.4 |
56 |
5.48 |
220 |
21.56 |
407 |
0.8 |
18 |
|
32 |
1 1/4 |
33 |
37.6 |
30 |
2.94 |
240 |
23.52 |
500 |
1.9 |
18 |
|
40 |
1 1/2 |
39 |
43.6 |
30 |
2.94 |
240 |
23.52 |
800 |
2.2 |
18 |
|
50 |
2 |
49 |
54.6 |
20 |
1.96 |
160 |
15.68 |
1200 |
3.4 |
18 |
Other specifications can be customized according to customer requirements
