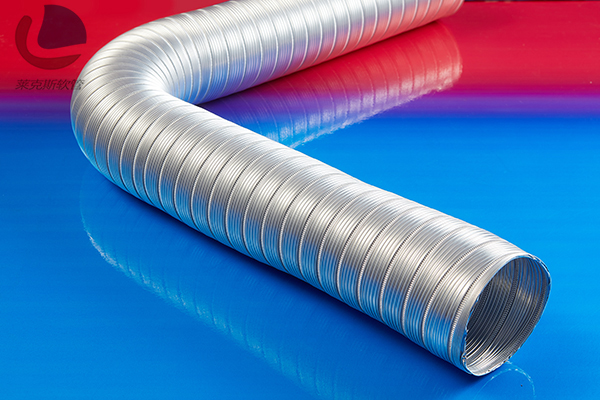

Aluminum exhaust pipe LKE455
Material: aluminum foil
Aluminum foil thickness: 0.05-0.15mm
Features: The aluminum high-temperature air duct fully meets the fire protection requirements, is easy to bend to any angle, and can expand and contract freely. It is convenient for transportation and has the advantages of high temperature resistance, shock absorption and noise reduction, strong sealing, and long service life.
Uses: Aluminum exhaust ducts are widely used in pumping units, water heaters, exhaust fans, ceramic kilns, central air conditioners, etc.
Specifications:
|
DN mm |
Thickness mm |
Length m |
Item NO |
|
45 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0045 |
|
50 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0050 |
|
60 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0060 |
|
70 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0070 |
|
80 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0080 |
|
90 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0090 |
|
100 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0100 |
|
110 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0110 |
|
125 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0125 |
|
130 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0130 |
|
150 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0150 |
|
160 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0160 |
|
180 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0180 |
|
200 |
0.08 / 0.1/ 0.12/ 0.15 |
3 |
LKE-455-0200 |
