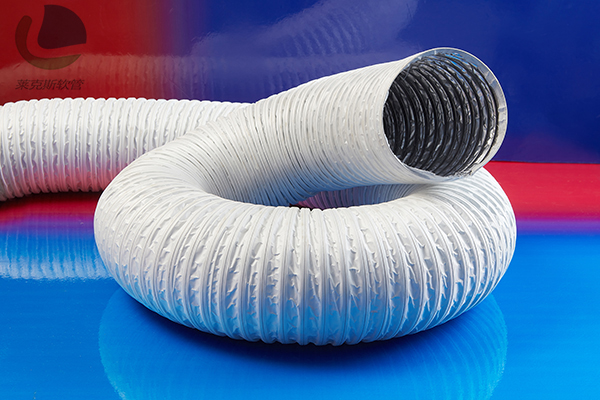

Composite aluminum foil fiber duct LKE464

High-Temperature Resistance: 180°C

Construction:

Material: Composed of 0.25mm-thick white heat-resistant fiberglass fabric with an inner layer of composite aluminum foil for duct construction.

Internal Support: Spirally wound and tightly clamped with 8mm-wide, 1.5mm-thick grooved galvanized (zinc-plated) metal strips for enhanced pressure resistance and moderate temperature tolerance.

Features: Easy installation, pressure-resistant, suitable for applications requiring heat resistance up to 180°C. Compatible with aluminum-fiberglass-lined ducts rated for temperatures ≤180°C.

Applications:

Highly flexible, heat-resistant (180°C) air supply/exhaust ducts for drying systems, hot air equipment, and similar industrial uses requiring robust ventilation.

Characteristics:

Bendable,(highly resilient to bending/stretching), moderate temperature-resistant air duct.

Standard Color: White exterior, silver interior.

Specifications:

Standard Length per Unit: 5 meters/roll.

Minimum Bending Radius: 1.25×D (where D = duct diameter).

Spiral Galvanized Steel Strip Pitch: 19mm–24mm spacing.

Flexible Duct Material: Double-layer aluminum-fiberglass composite lining, inner diameters ranging from 2" to 12".

Customization:

Other specifications, dimensions, or special requirements can be tailored upon request.

Specifications:

Remarks: The above data is provided for reference only. All data represents average values measured at ambient temperature. Relevant technical parameters may vary slightly depending on the operating environment and materials selected. For specific details, please consult our sales staff.
