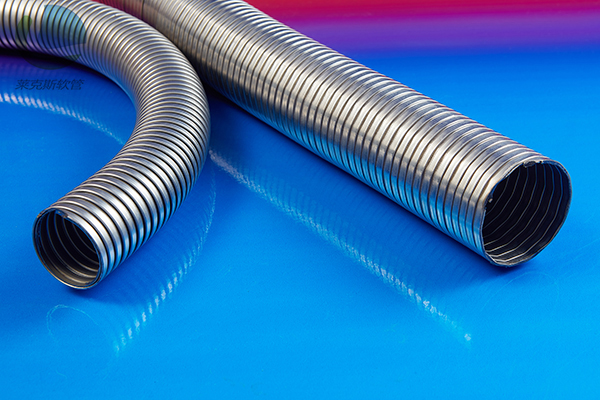

High-temperature air duct LKE480
Application: High-temperature air duct LKE480 is especially suitable for replenishment, unloading, overturning, stacking of large grain depots such as farms, stations, and wharfs, as well as bulk and bulk transportation in the production process of grain processing, feed processing and beer brewing industries. Mechanized operation pipelines such as bulk unloading and transportation. It can also be used in steel mills, boiler exhaust systems and hot air exhaust and suction occasions.
Material: Two kinds: 1. Low-carbon galvanized steel strip 2. SUS304 stainless steel
Uses: Used to transport grain (grain, rice, shell, flour), sawdust, yellow sand, coke, crushed ore and ventilation pipes.
Temperature range: -70 degrees to +1000 degrees
Specifications:
|
I.D |
O.D |
Bend redius |
Weight |
Length |
Item NO |
|
20 |
24 |
100 |
0.350 |
10 |
LKE00480-020 |
|
25 |
29 |
110 |
0.430 |
10 |
LKE00480-025 |
|
30 |
34 |
130 |
0.510 |
10 |
LKE00480-030 |
|
32 |
36 |
140 |
0.550 |
10 |
LKE00480-032 |
|
35 |
39 |
150 |
0.590 |
10 |
LKE00480-035 |
|
38 |
42 |
155 |
0.650 |
10 |
LKE00480-038 |
|
40 |
45 |
155 |
0.680 |
10 |
LKE00480-040 |
|
45 |
50 |
165 |
0.760 |
10 |
LKE00480-045 |
|
50 |
55 |
180 |
0.840 |
10 |
LKE00480-050 |
|
55 |
60 |
200 |
0.900 |
10 |
LKE00480-055 |
|
60 |
66 |
215 |
1.010 |
10 |
LKE00480-060 |
|
65 |
71 |
230 |
1.090 |
10 |
LKE00480-065 |
|
70 |
76 |
240 |
1.170 |
10 |
LKE00480-070 |
|
75 |
81 |
255 |
1.250 |
10 |
LKE00480-075 |
|
80 |
86 |
270 |
1.340 |
10 |
LKE00480-080 |
|
90 |
97 |
280 |
1.850 |
10 |
LKE00480-090 |
|
100 |
107 |
300 |
2.040 |
10 |
LKE00480-100 |
|
110 |
117 |
330 |
2.240 |
10 |
LKE00480-110 |
|
120 |
127 |
380 |
2.440 |
10 |
LKE00480-120 |
|
125 |
132 |
400 |
2.540 |
10 |
LKE00480-125 |
|
130 |
139 |
410 |
2.920 |
10 |
LKE00480-130 |
|
140 |
149 |
430 |
3.130 |
10 |
LKE00480-140 |
|
150 |
159 |
460 |
3.350 |
10 |
LKE00480-150 |
|
160 |
169 |
490 |
3.570 |
10 |
LKE00480-160 |
|
170 |
179 |
520 |
3.720 |
10 |
LKE00480-170 |
|
180 |
189 |
545 |
4.010 |
10 |
LKE00480-180 |
|
200 |
211 |
560 |
5.510 |
5 |
LKE00480-200 |
|
225 |
236 |
630 |
6.180 |
5 |
LKE00480-225 |
|
250 |
261 |
700 |
6.850 |
5 |
LKE00480-250 |
|
275 |
286 |
770 |
7.520 |
5 |
LKE00480-275 |
|
300 |
311 |
850 |
8.200 |
5 |
LKE00480-300 |
