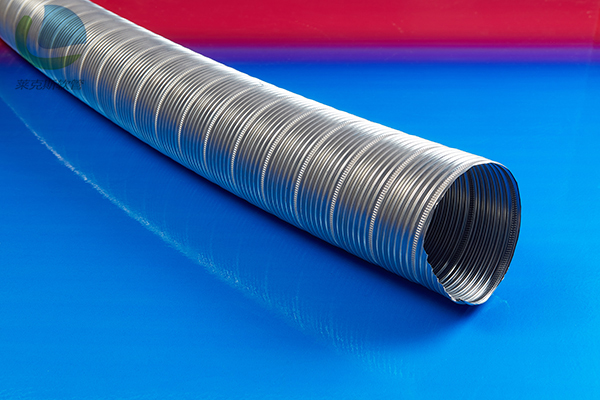

Stainless steel ventilation hose LKE461 is a high-quality flexible pipe in modern industrial pipelines, which is pressed by a stainless steel belt bending machine. It has good flexibility, fatigue resistance, high pressure resistance, high and low temperature resistance, corrosion resistance, long life, easy shaping and many other characteristics. Mainly used in chemical industry, factory and mining equipment, various machinery, electromechanical, construction, building materials and other special pipes.
Material: 304 stainless steel belt, mechanical properties: buckled by 304 stainless steel belt machine, screw connection, high temperature resistance, acid and alkali resistance, wide range of use, suitable for dust collection, exhaust, and air extraction.
Specifications:
|
DN (mm) |
Thickness (mm) |
Length (m) |
ItemNO |
|
45 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0045 |
|
50 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0050 |
|
60 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0060 |
|
70 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0070 |
|
80 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0080 |
|
90 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0090 |
|
100 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0100 |
|
110 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0110 |
|
125 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0125 |
|
130 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0130 |
|
150 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0150 |
|
160 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0160 |
|
180 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0180 |
|
200 |
0.08 / 0.1/ 0.12/ 0.15 |
4 |
LKE-461-0200 |
