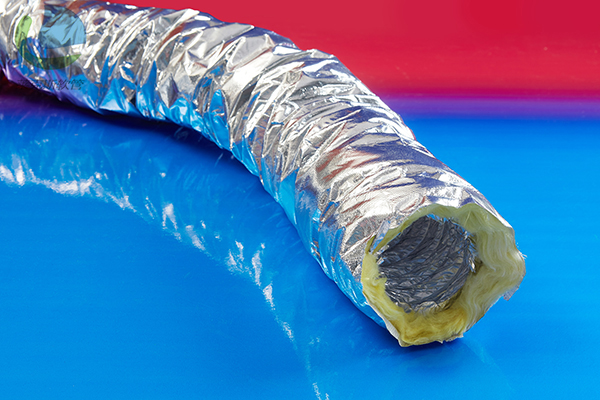

High temperature insulation hose LKE427
Material: aluminum foil, 25mm thick 16kg-24kg/m3 glass wool
Features: It is made of reinforced aluminum foil and supported by spiral high-tension steel wire. The outer layer of 25mm thick 16kg-24kg/m3 glass wool covered with glass fiber cloth is used for medium and low wind speed systems, and it has passed the GB8624B1 level combustion test.
Specifications:
Order Code
Item No
Specification
mm
Steel wire
mm
Aluminum
Foil Thickness
mm
Density and Thickness
Of insulation Cotton
mm
Thickness of
Aluminum Foil
mm
Thickness of PVC
mm
LKE-427-100
100
0.9
0.035
20K*25mm
0.026
0.1
LKE-427-125
125
0.9
0.035
20K*25mm
0.026
0.1
LKE-427-150
150
1
0.035
20K*25mm
0.026
0.1
LKE-427-165
165
1
0.035
20K*25mm
0.026
0.1
LKE-427-200
200
1.1
0.035
20K*25mm
0.026
0.1
LKE-427-250
250
1.2
0.035
20K*25mm
0.026
0.1
LKE-427-300
300
1.2
0.035
20K*25mm
0.026
0.1
LKE-427-315
315
1.2
0.035
20K*25mm
0.026
0.1
LKE-427-350
350
1.2
0.035
20K*25mm
0.026
0.1
LKE-427-400
400
1.2
0.035
20K*25mm
0.026
0.1
Remarks: The above data is provided for reference only. All data represents average values measured at ambient temperature. Relevant technical parameters may vary slightly depending on the operating environment and materials selected. For specific details, please consult our sales staff.
