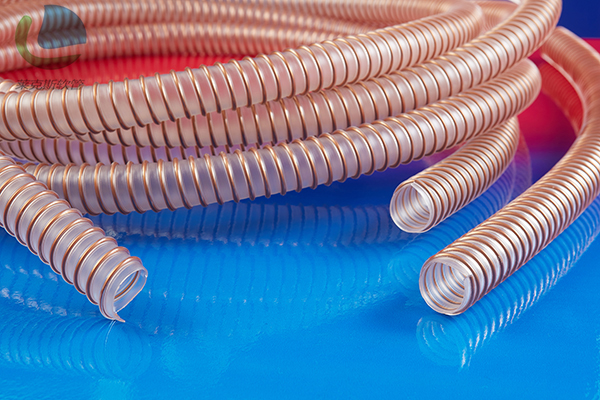

PU wear-resistant steel wire tube LKE00551

PU wear-resistant steel wire tube LKE00551

Application: PU wear-resistant steel wire tube LKE00531 is used as a wear-resistant conveying hose for heavy materials. It is generally used in suction occasions. Particularly suitable for abrasive solids, such as dust, powder, fibers and debris, active media such as oil vapor and welding fumes, industrial dust removal and suction. Mainly used for ventilation and dust collection in dusty production environments such as woodworking machinery, ceramic machinery, and cement workshops.

Attributes: wear-resistant protection. High tensile strength. Strong tear resistance; anti-microbial and hydrolysis. Excellent mineral oil resistance and chemical resistance. UV and ozone resistance. Low temperature resistance. Small bending radius. Not easy to kink. Does not contain softener and halogen. Gas and liquid do not leak. Complies with RoHS regulations. Grounding through spiral wire can discharge static electricity. Comply with EN45545 fire protection standard.

It can be customized into food-grade hoses. The pipe wall complies with: FDA 21 CFR 177.2600 and 178.2010. EC regulations 2002/72/EC including revised regulations 2007/19/EC The testing agency certified conforms to EC 2002/72/EC regulations. Including revised 2007/19/EC.

Structure: with copper-plated plastic coated steel wire spiral reinforcement. Ribbon extrusion. Wall thickness is about 1.0 mm

Material: pipe wall: special polyether-polyurethane. Spiral wire: elastic steel wire

Temperature range: about -40°C to +100°C, up to +125°C in a short time

Specifications:

I.D





O.D

OP.pressure

Bend radius

(middle of

hose)

Weight

Length

Item NO

positive

pressure

negative

pressure

mm

mm

bar

bar

mm

Kg/m

m



20

25

1.8

0.50

25

0.13

20

LKE-551-0020

25

32

1.6

0.36

32

0.17

20

LKE-551-0025

30

37

1.345

0.34

37

0.2 0

20

LKE-551-0030

32

39

1.26

0.34

39

0.21

20

LKE-551-0032

38

45

1.06

0.32

45

0.25

 20

LKE-551-0038

40

47

1.015

0.3

47

0.28

 20

LKE-551-0040

45

52

0.9

0.285

52

0.31

20

LKE-551-0045

50

58

0.815

0.26

58

0.36

 20

LKE-551-0050

51

59

0.8

0.26

59

0.37

20

LKE-551-0051

60

68

0.68

0.21

68

0.43

20

LKE-551-0060

63

71

0.645

0.195

71

0.45

20

LKE-551-0063

65

73

0.63

0.18

73

0.47

20

LKE-551-0065

70

78

0.585

0.15

78

0.5 0

20

LKE-551-0070

75

83

0.545

0.14

83

0.53

20

LKE-551-0075

80

88

0.51

0.13

88

0.57

20

LKE-551-0080

90

98

0.455

0.115

98

0.63

20

LKE-551-0090

100

108

0.41

0.09

108

0.66

20

LKE-551-0100

102

110

0.4

0.09

110

0.68

20

LKE-551-0102

110

118

0.375

0.08

118

0.73

 20

LKE-551-0110

115

123

0.355

0.08

123

0.76

20

LKE-551-0115

120

128

0.34

0.075

128

0.79

20

LKE-551-0120

125

133

0.33

0.06

133

0.82

20

LKE-551-0125

127

135

0.325

0.06

135

0.83

20

LKE-551-0127

130

138

0.315

0.06

138

0.85

20

LKE-551-0130

140

148

0.295

0.06

148

0.92

20

LKE-551-0140

150

158

0.275

0.055

158

0.98

 20

LKE-551-0150

152

160

0.27

0.055

160

0.99

20

LKE-551-0152

160

168

0.255

0.05

168

1.04

20

LKE-551-0160

170

178

0.24

0.045

178

1.11

20

LKE-551-0170

175

183

0.235

0.04

183

1.14

20

LKE-551-0175

180

188

0.23

0.04

188

1.17

20

LKE-551-0180

200

208

0.205

0.04

208

1.54

20

LKE-551-0200

203

211

0.205

0.04

211

1.57

20

LKE-551-0203

225

233

0.18

0.03

233

1.75

20

LKE-551-0225

250

258

0.165

0.015

258

1.90

20

LKE-551-0250
