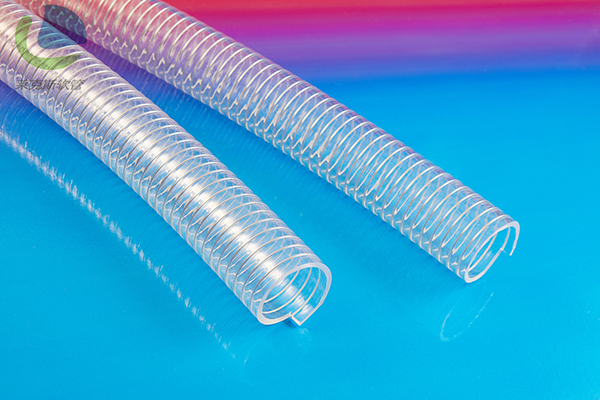

TPU steel wire hose LKE550
Uses: TPU steel wire hose LKE550 can be widely used in industry, agriculture, water conservancy, fishery, civil engineering, food, sanitation, petrochemical and other industries. It is an excellent pipe for high pressure, suction, water, oil, and powder particle transportation.
This product is a substitute product for PVC pipe, rubber pipe and metal pipe. It can be used in factories, farmland irrigation, coal mines, oil depots, wineries, liquid food and sand pumping, sand blasting equipment for suction, discharge, vending machines, ice shavers, refrigerators and other equipment.
Features: This product is a TPU hose embedded with a steel wire frame, which is light in weight, soft, good elasticity, corrosion resistance, hydrolysis resistance, high transparency, odorless, small bending radius, good negative pressure resistance, and can maintain its original shape under vacuum . It can maintain good flexibility at low temperatures. High strength and long service life.
Type: polyester type TPU steel wire spiral reinforced hose; polyether type TPU steel wire hose; polycaprolactone type TPU steel wire hose; low cost TPU steel wire spiral reinforced hose
Transport medium: chemical liquid, food and beverage, oil, water, gas, solid particles
Applicable temperature: -35℃—90℃
Hardness range: 75A—98A
Specifications:
|
型号 |
英制尺寸 |
公制尺寸 Metric Measurement |
工作压力 W.P. |
爆破压力 B.P. |
重量 Weight
|
|||
|
Item No. |
Inch |
I.D.mm |
OD.mm |
m/roll |
MPa |
MPa |
Kg/roll |
|
|
PUGZ-25×3 |
1 |
25 |
31 |
50 |
-0.1~0.7 |
2.0 |
0.9 |
14.77 |
|
PUGZ-32×3 |
1-1/4 |
32 |
38 |
40 |
-0.1~0.6 |
1.8 |
0.8 |
14.77 |
|
PUGZ-38×3.5 |
1-1/2 |
38 |
45 |
40 |
-0.1~0.6 |
1.7 |
0.7 |
20.43 |
|
PUGZ-50×3.5 |
2 |
50 |
57 |
40 |
-0.1~0.5 |
1.5 |
0.6 |
26.34 |
|
PUGZ-64×4 |
2-1/2 |
64 |
62 |
20 |
-0.1~0.5 |
1.4 |
0.5 |
19.13 |
|
PUGZ-75×5 |
3 |
75 |
85 |
20 |
-0.1~0.4 |
1.2 |
0.5 |
28.13 |
|
PUGZ-90×6 |
3-1/2 |
90 |
102 |
20 |
-0.1~0.3 |
1.0 |
0.5 |
40.51 |
|
PUGZ-100×7 |
4 |
100 |
114 |
20 |
-0.1~0.3 |
0.9 |
0.5 |
52.68 |
