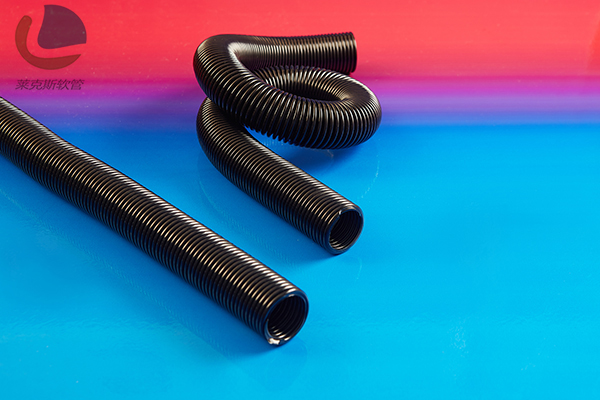

Respirator hose LKE783
Structure: Pipe wall material: PU; Hardness is shaw 85A. PP rigid helix welded to the wall.
Features: light and soft, flexible bending, excellent mechanical properties, high tensile strength, elongation at break and wear resistance, and halogen-free.
Application: Cable protection pipe. Air ducts. Suction. Blast and delivery hose. Especially suitable for vacuum cleaner and ventilation system.
Temperature range: -40°C to +90°C (up to +125°C in a short time)
Standard color: black
Cable: UL certified products are available for selection
Product specifications:
|
内径 Ø = d I.D. Ø = d |
外径 Ø = D O.D. = D |
弯曲半径 r (min.) |
重量 Weight |
负荷能力 = Load Capacity |
长度 Length |
产品代码 Part-No. |
|||
|
|
|
|
|
|
|
负压 Vacuum |
压力 Pressure |
|
|
|
毫米 |
公差 Tolerance |
毫米 mm |
公差 Tolerance |
毫米 |
克/米 |
毫巴 |
帕 |
米 |
|
|
20 |
|
28 |
|
32 |
135 |
500 |
0.8 |
10m |
LKE783-020 |
|
22 |
30 |
35 |
150 |
500 |
0.8 |
LKE783-022 |
|||
|
25 |
33 |
39 |
175 |
400 |
0.6 |
LKE783-025 |
|||
|
28 |
36 |
43 |
200 |
400 |
0.6 |
LKE783-028 |
|||
|
30 |
38 |
46 |
210 |
400 |
0.6 |
LKE783-030 |
|||
|
32 |
+/- 0.8 |
40 |
+/- 0.8 |
50 |
230 |
400 |
0.6 |
LKE783-032 |
|
|
35 |
43 |
54 |
250 |
400 |
0.6 |
LKE783-035 |
|||
|
38 |
46 |
59 |
270 |
400 |
0.6 |
LKE783-038 |
|||
|
40 |
48 |
61 |
280 |
400 |
0.6 |
LKE783-040 |
|||
|
45 |
53 |
68 |
320 |
400 |
0.6 |
LKE783-045 |
|||
|
50 |
58 |
75 |
350 |
300 |
0.4 |
LKE783-050 |
|||
|
52 |
+/- 1.0
|
61 |
+/- 1.0
|
78 |
360 |
300 |
0.4 |
LKE783-052 |
|
|
55 |
64 |
83 |
390 |
300 |
0.4 |
LKE783-055 |
|||
|
60 |
69 |
90 |
430 |
250 |
0.4 |
LKE783-060 |
|||
|
65 |
74 |
98 |
460 |
250 |
0.4 |
LKE783-065 |
|||
|
70 |
79 |
105 |
500 |
200 |
0.35 |
LKE783-070 |
|||
|
75 |
84 |
120 |
530 |
200 |
0.35 |
LKE783-075 |
|||
|
80 |
89 |
130 |
570 |
150 |
0.3 |
LKE783-080 |
|||
|
90 |
99 |
140 |
650 |
150 |
0.3 |
LKE783-090 |
|||
|
100 |
109 |
160 |
750 |
150 |
0.3 |
LKE783-100 |
|||
