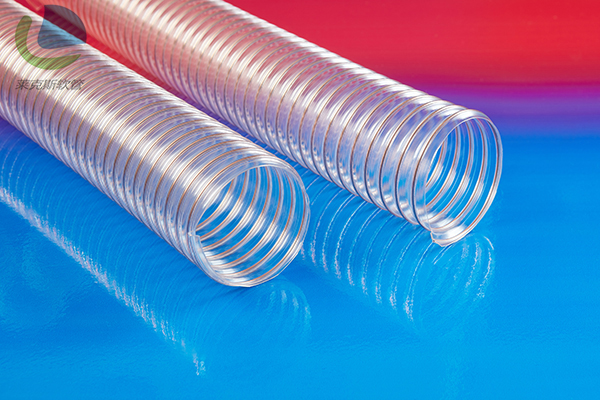

Sweeper vacuum hose LKE503
Application: Sweeper vacuum hose LKE503 is usually used for suction occasions. Especially suitable for abrasive solids, such as dust, powder, fibers, debris and granular materials; gaseous and liquid media. Industrial dust removal and suction. Industrial vacuum cleaners . Paper or fabric fiber suction. Ceramic mechanical cutting. As an anti-wear protection tube.
Attributes: high abrasion protection (abrasion resistance is 6 times higher than that of most rubber materials, and 5 times higher than soft PVC). The interior is smooth. The wind resistance is small. The objects in the pipe flow more smoothly. Scalable; high tensile strength .And tear strength;
Can be customized into food-grade pipes: the pipe wall complies with: FDA 21 CFR 177.2600 and 178.2010. Complies with EC 2002/72/EC regulations. Including revised 2007/19/EC anti-microbial and hydrolysis. Good mineral oil resistance and chemical resistance; good UV and ozone resistance and low-temperature flexibility. Small bending radius. Not easy to kink. No softener and halogen; no leakage of gas and liquid. Flame retardant meets UL94-HB Standards. RoHS compliant. Grounding through spiral wire can discharge static electricity. Comply with EN45545 fire protection standard.
Structure: Spiral elastic steel wire is firmly implanted into the wall of the tube. The external fluidity is more optimized. The wall thickness is about 0.9 mm
Material: pipe wall: (polyether-polyurethane. polyester-polyurethane) optional. Spiral wire: copper-plated elastic steel wire.
Temperature range: about -40°C to +100°C. Up to +125°C in a short time
Specifications:
|
I.D |
O.D |
OP.pressure |
Bend radius ( Middle of hose) |
Weight |
Length |
Item NO |
|
|
positive pressure |
negative pressure |
||||||
|
mm |
mm |
bar |
bar |
mm |
Kg/m |
m |
|
|
25 |
32 |
2.69 |
0.495 |
35 |
0.2 |
20 |
LKE-503-0025 |
|
30 |
38 |
2.26 |
0.475 |
42 |
0.26 |
20 |
LKE-503-0030 |
|
32 |
40 |
2.12 |
0.46 |
44 |
0.28 |
20 |
LKE-503-0032 |
|
35 |
43 |
1.94 |
0.44 |
47 |
0.3 |
20 |
LKE-503-0035 |
|
38 |
46 |
1.795 |
0.43 |
51 |
0.32 |
20 |
LKE-503-0038 |
|
40 |
48 |
1.71 |
0.42 |
53 |
0.34 |
20 |
LKE-503-0040 |
|
45 |
53 |
1.525 |
0.385 |
58 |
0.38 |
20 |
LKE-503-0045 |
|
50 |
58 |
1.37 |
0.365 |
64 |
0.41 |
20 |
LKE-503-0050 |
|
55 |
63 |
1.255 |
0.33 |
69 |
0.45 |
|
LKE-503-0055 |
|
60 |
68 |
1.15 |
0.285 |
75 |
0.49 |
|
LKE-503-0060 |
|
65 |
73 |
1.06 |
0.255 |
80 |
0.53 |
|
LKE-503-0065 |
|
70 |
79 |
0.99 |
0.21 |
87 |
0.59 |
|
LKE-503-0070 |
|
75 |
84 |
0.92 |
0.195 |
92 |
0.64 |
20 |
LKE-503-0075 |
|
80 |
89 |
0.86 |
0.175 |
98 |
0.68 |
|
LKE-503-0080 |
|
90 |
99 |
0.77 |
0.155 |
109 |
0.75 |
20 |
LKE-503-0090 |
|
100 |
109 |
0.69 |
0.12 |
120 |
0.97 |
|
LKE-503-0100 |
|
102 |
111 |
0.68 |
0.12 |
122 |
0.99 |
20 |
LKE-503-0102 |
|
110 |
119 |
0.63 |
0.11 |
131 |
1.06 |
|
LKE-503-0110 |
|
115 |
124 |
0.605 |
0.105 |
136 |
1.11 |
20 |
LKE-503-0115 |
|
120 |
129 |
0.58 |
0.105 |
142 |
1.16 |
|
LKE-503-0120 |
|
125 |
134 |
0.56 |
0.085 |
147 |
1.2 |
|
LKE-503-0125 |
|
127 |
136 |
0.545 |
0.085 |
148 |
1.22 |
20 |
LKE-503-0127 |
|
130 |
139 |
0.535 |
0.085 |
153 |
1.25 |
20 |
LKE-503-0130 |
|
140 |
149 |
0.495 |
0.085 |
164 |
1.34 |
20 |
LKE-503-0140 |
|
150 |
159 |
0.46 |
0.075 |
175 |
1.52 |
|
LKE-503-0150 |
|
160 |
169 |
0.435 |
0.065 |
186 |
1.61 |
20 |
LKE-503-0160 |
|
170 |
179 |
0.41 |
0.065 |
195 |
1.71 |
20 |
LKE-503-0170 |
|
175 |
184 |
0.4 |
0.055 |
202 |
1.76 |
20 |
LKE-503-0175 |
|
180 |
189 |
0.385 |
0.055 |
208 |
1.81 |
20 |
LKE-503-0180 |
|
200 |
209 |
0.35 |
0.055 |
230 |
2 |
|
LKE-503-0200 |
|
203 |
212 |
0.345 |
0.055 |
233 |
2.03 |
20 |
LKE-503-0203 |
|
225 |
234 |
0.31 |
0.04 |
257 |
2.16 |
20 |
LKE-503-0225 |
|
250 |
259 |
0.28 |
0.02 |
285 |
2.39 |
20 |
LKE-503-0250 |
|
275 |
284 |
0.255 |
0.02 |
312 |
2.63 |
|
LKE-503-0275 |
|
280 |
289 |
0.25 |
0.02 |
318 |
2.67 |
20 |
LKE-503-0280 |
|
300 |
309 |
0.23 |
0.02 |
340 |
2.86 |
|
LKE-503-0300 |
|
315 |
324 |
0.22 |
0.02 |
356 |
3 |
20 |
LKE-503-0315 |
|
320 |
329 |
0.215 |
0.02 |
362 |
3.05 |
20 |
LKE-503-0320 |
|
325 |
334 |
0.215 |
0.015 |
367 |
3.1 |
|
LKE-503-0325 |
|
350 |
359 |
0.2 |
0.015 |
395 |
3.33 |
|
LKE-503-0350 |
|
375 |
384 |
0.185 |
0.01 |
424 |
3.9 |
20 |
LKE-503-0375 |
|
400 |
409 |
0.17 |
0.01 |
450 |
4.27 |
|
LKE-503-0400 |
|
450 |
459 |
0.155 |
0.01 |
508 |
4.8 |
20 |
LKE-503-0450 |
|
500 |
509 |
0.14 |
0.01 |
565 |
5.33 |
20 |
LKE-503-0500 |
